A couple notes on the scans:

  • The battery and BIOS chip were removed.
  • Any metal stand offs seen around the edge of the boards were use to level the board for scanning.

The 2 resisters on the bottom of the logic board appear to be a factory fix for a defect with the board's design related to the video sync signal. This fix has been seen on multiple MV4FT boards.

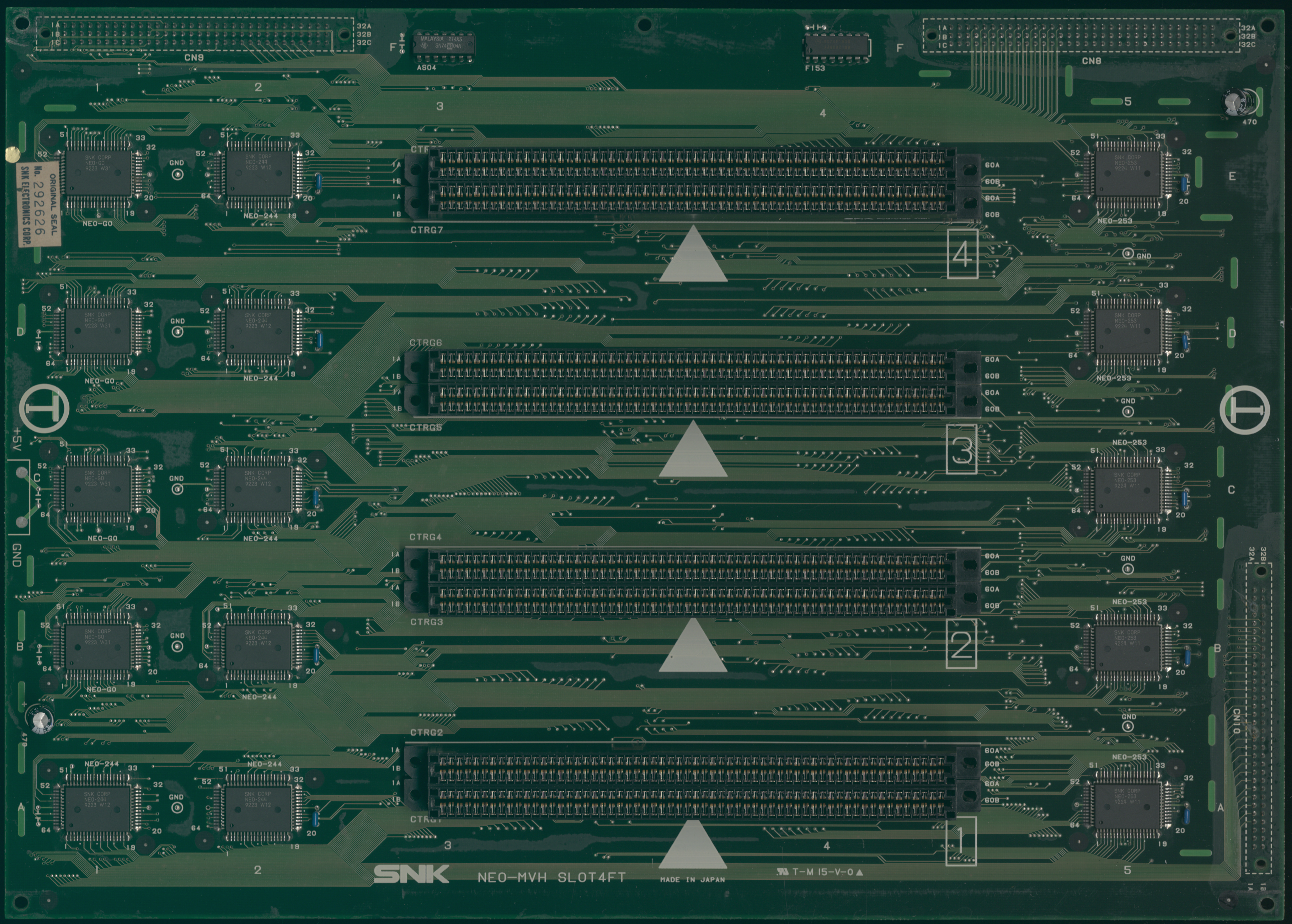

upper board top
upper board bottom
lower board top
lower board bottom
